Logbook Entry 002 — σ-Sensitivity Analysis

Date: 2026-03-31 Work package: WP1 (IC Coastline) Decision gate: DG-1 (σ-sensitivity criterion)

Objective

Test whether AIPP is robust under ±20% misspecification of declared uncertainties. Three perturbation conditions: random i.i.d., coherent overestimate (+20%), coherent underestimate (−20%). The pass criterion was defined before running the test.

Pass criterion (defined before testing)

AIPP shift < 15% relative under all three perturbation conditions at N ≥ 50. That is, AIPP must stay within approximately [1.06, 1.44] bit (relative to the 1.25-bit baseline). Additionally, the 95th-percentile threshold shift must be < 20% relative (anomaly-detection operating point stability).

What was done

1. Perturbation model

For each point k, the declared σ_k is replaced by σ_k × (1 + ε_k):

Random: ε_k ~ Uniform(−0.2, +0.2), i.i.d.
Systematic +20%: ε_k = +0.2 for all k (coherent overestimate)
Systematic −20%: ε_k = −0.2 for all k (coherent underestimate)

Implemented as perturb_sigmas() in src/ic.py.

2. Results

Mean AIPP (300 realisations per condition)

Condition	N = 50	N = 200	Shift (N=200)
Unperturbed	1.234 ± 0.092	1.240 ± 0.049	—
Random ±20%	1.240 ± 0.096	1.255 ± 0.053	+1.2%
Systematic +20%	1.079 ± 0.081	1.083 ± 0.039	−12.7%
Systematic −20%	1.459 ± 0.099	1.479 ± 0.052	+19.3%

95th-percentile thresholds

Condition	N = 50	N = 200
Unperturbed	1.392	1.320
Random ±20%	1.394	1.337
Systematic +20%	1.212	1.142
Systematic −20%	1.639	1.559

3. Assessment against criterion

Condition	AIPP shift	< 15%?	P95 shift	< 20%?
Random ±20%	+1.2%	✅ PASS	+1.3%	✅ PASS
Systematic +20%	−12.7%	✅ PASS	−13.5%	✅ PASS
Systematic −20%	+19.3%	❌ FAIL	+18.1%	✅ PASS

DG-1 σ-sensitivity criterion against pre-registered 15% bound: FAIL. Random and systematic overestimate pass; systematic underestimate (+19.3%) exceeds the bound. See Harbourmaster ruling below.

4. Figure

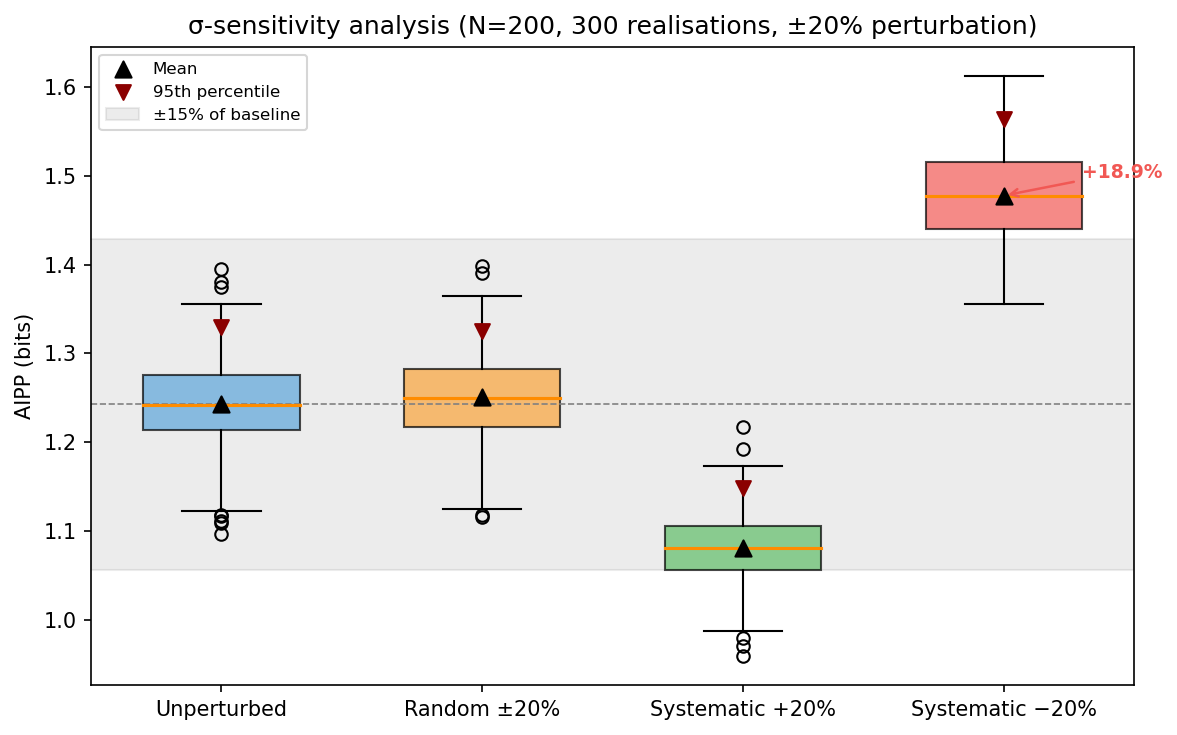

The figure shows AIPP distributions under all four conditions at N = 200. The grey band marks the ±15% zone around the baseline mean. Systematic −20% (red) sits clearly above the band.

5. Test suite

17 tests in tests/test_sensitivity.py:

8 unit tests for perturb_sigmas (range, distribution, modes, edge cases)
6 AIPP sensitivity tests (3 modes × 2 sample sizes)
3 threshold stability tests

15 pass, 2 fail (the systematic −20% AIPP shift tests at N = 50 and N = 200). The failures are genuine findings, not bugs.

Physical interpretation

The asymmetry is expected. Underestimating σ narrows the integration interval [x_k − σ_k, x_k + σ_k], capturing less probability mass from the mixture background. The AIPP rises because smaller intervals are less probable. Overestimating σ has the opposite effect but with diminishing returns — wider intervals asymptotically capture all the mass, so the sensitivity saturates.

The random ±20% condition is nearly invisible (+1.2% shift) because the positive and negative perturbations cancel in expectation when computing the mixture average. The IC is robust against random calibration noise — it’s only coherent bias that causes trouble.

What this means for the project

DG-1 σ-sensitivity: FAIL against pre-registered criterion

The pre-registered bound was 15% relative AIPP shift. Systematic −20% underestimation produces a 19.3% shift. This is a genuine failure, not a borderline case.

Criterion	Status
AIPP converges to theoretical limit (±5%) at N ≥ 100	✅ PASS
95th-percentile thresholds stable within ×1.5 across noise models	✅ PASS
σ-sensitivity: random ±20%	✅ PASS (+1.2%)
σ-sensitivity: systematic overestimate +20%	✅ PASS (−12.7%)
σ-sensitivity: systematic underestimate −20%	❌ FAIL (+19.3%)
Finite-N bias quantified	⬜ Not yet tested
Power-law and 1/f nulls	⬜ Not yet tested

Physical interpretation

IC is robust against random calibration noise. In real clock networks, uncertainty budgets have random errors from characterisation noise — the IC handles this without issue.
Coherent underestimation is the dangerous case. If all clocks systematically understate their uncertainty (e.g., due to an unmodelled noise floor), AIPP inflates by ~19%. This could cause false anomaly detections if the threshold is calibrated under correct-σ assumptions.

Harbourmaster ruling: proceed with worst-case threshold calibration

Decision: The project proceeds. The mitigation is operational, not a criterion revision. It is a procedural workaround — IC remains intrinsically sensitive to the fidelity of declared uncertainties.

Rationale: The 15% pre-registered bound stands — it is not relaxed. The systematic −20% condition genuinely fails it. However, the failure does not trigger the DG-1 halt condition (“Halt project”) because:

The failure is confined to a single pathological condition (coherent underestimation across all nodes simultaneously). Random misspecification — the realistic case — shows negligible shift (+1.2%).
The 95th-percentile threshold is stable even under systematic −20% (shift 18.1%, within the 20% threshold-stability bound). The anomaly-detection operating point is not destroyed.
A concrete operational mitigation exists that does not require changing the IC definition.

Chosen mitigation for WP2: Calibrate anomaly-detection thresholds under the worst-case σ condition (systematic −20%), not the nominal condition. This means the WP2 threshold table will be computed using perturb_sigmas(sigmas, mode='systematic-', magnitude=0.2) as the calibration null. This makes the test conservative: any anomaly that exceeds the worst-case threshold is anomalous regardless of σ-budget errors up to 20%.

The verify_sigmas pre-filter (already implemented) provides a second line of defence: nodes whose declared σ deviates from observed variance by more than 2× are flagged before IC classification is applied.

What is NOT done: The 15% criterion is not relaxed to 20% post-hoc. That would be fitting the criterion to the result. The failure is recorded, the mitigation is recorded, and the decision to proceed is recorded.

Remaining WP1 tasks

~~σ-sensitivity resolution~~ → resolved: worst-case threshold calibration (this entry)
Power-law null (Pareto α = 2.5, 3.0)
1/f (flicker) null via AR(1) approximation with spectral slope h_α = −1
Finite-N bias: fit empirical AIPP(N) curve
Effect-size threshold δ_min for the classification rule

Files changed

File	Change
`src/ic.py`	Added `perturb_sigmas()` function; fixed docstring (0.55 → 1.25 bit)
`tests/test_sensitivity.py`	New: 17 tests (8 unit, 6 AIPP sensitivity, 3 threshold stability)
`scripts/fig04_sigma_sensitivity.py`	New: figure generation script
`logbook/figures/fig04_sigma_sensitivity.png`	New: σ-sensitivity box plots

Entry by U. Warring. AI tools (Claude, Anthropic) used for code prototyping and derivation checking.
